Object detection¶

In [ ]:
!pip install ultralytics

Looking in indexes: https://pypi.org/simple, https://us-python.pkg.dev/colab-wheels/public/simple/
Collecting ultralytics
  Downloading ultralytics-8.0.61-py3-none-any.whl (490 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 490.6/490.6 KB 8.6 MB/s eta 0:00:00
Requirement already satisfied: Pillow>=7.1.2 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (8.4.0)
Requirement already satisfied: torch>=1.7.0 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (1.13.1+cu116)
Requirement already satisfied: numpy>=1.21.6 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (1.22.4)
Requirement already satisfied: opencv-python>=4.6.0 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (4.7.0.72)
Collecting sentry-sdk
  Downloading sentry_sdk-1.18.0-py2.py3-none-any.whl (194 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 194.8/194.8 KB 18.6 MB/s eta 0:00:00
Requirement already satisfied: tqdm>=4.64.0 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (4.65.0)
Requirement already satisfied: pandas>=1.1.4 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (1.4.4)
Requirement already satisfied: requests>=2.23.0 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (2.27.1)
Requirement already satisfied: matplotlib>=3.2.2 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (3.7.1)
Collecting thop>=0.1.1
  Downloading thop-0.1.1.post2209072238-py3-none-any.whl (15 kB)
Requirement already satisfied: psutil in /usr/local/lib/python3.9/dist-packages (from ultralytics) (5.9.4)
Requirement already satisfied: torchvision>=0.8.1 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (0.14.1+cu116)
Requirement already satisfied: scipy>=1.4.1 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (1.10.1)
Requirement already satisfied: PyYAML>=5.3.1 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (6.0)
Requirement already satisfied: seaborn>=0.11.0 in /usr/local/lib/python3.9/dist-packages (from ultralytics) (0.12.2)
Requirement already satisfied: importlib-resources>=3.2.0 in /usr/local/lib/python3.9/dist-packages (from matplotlib>=3.2.2->ultralytics) (5.12.0)
Requirement already satisfied: pyparsing>=2.3.1 in /usr/local/lib/python3.9/dist-packages (from matplotlib>=3.2.2->ultralytics) (3.0.9)
Requirement already satisfied: kiwisolver>=1.0.1 in /usr/local/lib/python3.9/dist-packages (from matplotlib>=3.2.2->ultralytics) (1.4.4)
Requirement already satisfied: cycler>=0.10 in /usr/local/lib/python3.9/dist-packages (from matplotlib>=3.2.2->ultralytics) (0.11.0)
Requirement already satisfied: contourpy>=1.0.1 in /usr/local/lib/python3.9/dist-packages (from matplotlib>=3.2.2->ultralytics) (1.0.7)
Requirement already satisfied: python-dateutil>=2.7 in /usr/local/lib/python3.9/dist-packages (from matplotlib>=3.2.2->ultralytics) (2.8.2)
Requirement already satisfied: packaging>=20.0 in /usr/local/lib/python3.9/dist-packages (from matplotlib>=3.2.2->ultralytics) (23.0)
Requirement already satisfied: fonttools>=4.22.0 in /usr/local/lib/python3.9/dist-packages (from matplotlib>=3.2.2->ultralytics) (4.39.3)
Requirement already satisfied: pytz>=2020.1 in /usr/local/lib/python3.9/dist-packages (from pandas>=1.1.4->ultralytics) (2022.7.1)
Requirement already satisfied: idna<4,>=2.5 in /usr/local/lib/python3.9/dist-packages (from requests>=2.23.0->ultralytics) (3.4)
Requirement already satisfied: certifi>=2017.4.17 in /usr/local/lib/python3.9/dist-packages (from requests>=2.23.0->ultralytics) (2022.12.7)
Requirement already satisfied: urllib3<1.27,>=1.21.1 in /usr/local/lib/python3.9/dist-packages (from requests>=2.23.0->ultralytics) (1.26.15)
Requirement already satisfied: charset-normalizer~=2.0.0 in /usr/local/lib/python3.9/dist-packages (from requests>=2.23.0->ultralytics) (2.0.12)
Requirement already satisfied: typing-extensions in /usr/local/lib/python3.9/dist-packages (from torch>=1.7.0->ultralytics) (4.5.0)
Requirement already satisfied: zipp>=3.1.0 in /usr/local/lib/python3.9/dist-packages (from importlib-resources>=3.2.0->matplotlib>=3.2.2->ultralytics) (3.15.0)
Requirement already satisfied: six>=1.5 in /usr/local/lib/python3.9/dist-packages (from python-dateutil>=2.7->matplotlib>=3.2.2->ultralytics) (1.16.0)
Installing collected packages: sentry-sdk, thop, ultralytics
Successfully installed sentry-sdk-1.18.0 thop-0.1.1.post2209072238 ultralytics-8.0.61
In [ ]:
from ultralytics import YOLO
In [ ]:
model = YOLO('yolov8n.pt')

Downloading https://github.com/ultralytics/assets/releases/download/v0.0.0/yolov8n.pt to yolov8n.pt...

  0%|          | 0.00/6.23M [00:00<?, ?B/s]

General pipeline¶

Bounding boxes for each cell¶

How to define default boxes:¶

  • Manually (user make it by hands)
  • From train dataset (clusterise training boxes and take most popular)

Standard output per cell¶

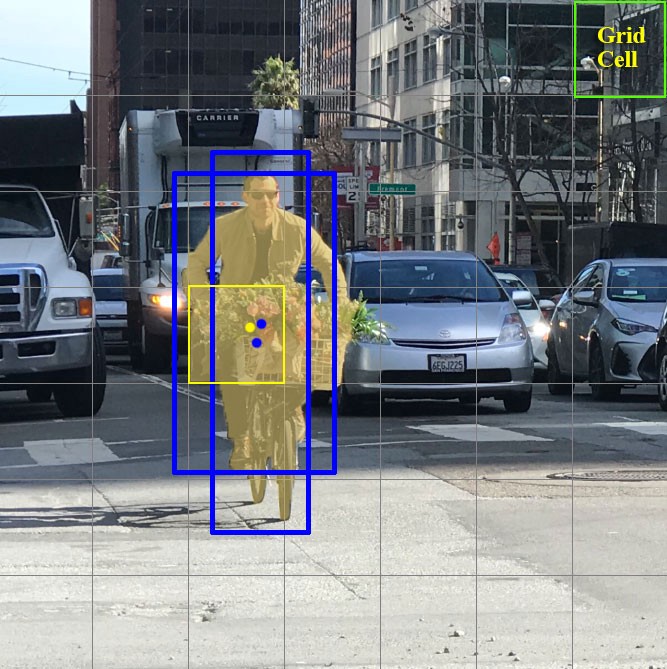

Real life case¶

Correction prediction¶

How to choose optimal box¶

In [ ]:
from PIL import Image
!wget -nv "https://www.learnopencv.com/wp-content/uploads/2021/01/person-segmentation.jpeg"

2023-04-03 18:04:24 URL:http://learnopencv.com/wp-content/uploads/2021/01/person-segmentation.jpeg [95431/95431] -> "person-segmentation.jpeg" [1]
In [ ]:
img = Image.open("/content/person-segmentation.jpeg")
plt.imshow(img)
plt.axis("off")
Out[ ]:
(-0.5, 1534.5, 1023.5, -0.5)
In [ ]:
results = model('/content/person-segmentation.jpeg')

image 1/1 /content/person-segmentation.jpeg: 448x640 5 persons, 1 dog, 241.2ms
Speed: 1.1ms preprocess, 241.2ms inference, 2.0ms postprocess per image at shape (1, 3, 640, 640)
In [ ]:
names = results[0].names
In [ ]:
labels = results[0].boxes.cls
labels_name = [names[label.item()] for label in labels]
labels_name
Out[ ]:
['person', 'person', 'person', 'dog', 'person', 'person']
In [ ]:
import matplotlib.pyplot as plt
%matplotlib inline
In [ ]:
fig, ax = plt.subplots()
ax.imshow(img)
for label_name,box in zip(labels_name,results[0].boxes.xywh):
  x,y,w,h = box
  x = x - w/2
  y = y - h/2
  c = "r" if label_name == "person" else "b"
  rect = plt.Rectangle((x,y), width=w, height=h, linewidth=2, edgecolor=c, facecolor='none')
  ax.add_patch(rect)
for label_name,box in zip(labels_name,results[0].boxes.xywh):
  x,y,w,h = box
  x = x - w/2
  y = y - h/2 - 20
  plt.text(x,y,label_name,fontsize=12,fontweight="bold")
plt.axis("off")
plt.show()
In [ ]:
